How to implement "text-overflow: ellipsis" or "text-overflow: clip"?

I’m trying to create a table with each cell to be a single line text which will replace overflowed text with ‘…’, or at least clip the overflowed text.

I have no idea how to achieve this, the table’s layout is something like this:

Column
    Container - table head
        Row
    Container - table body row #1
        Row
            Container - the cell
                Text - the text

I’ve tried invoking wrapping(Wrapping::None) on Text, but wrapping is still happening.

I can mimic a clipped single line text by fixing the height of Text widget, but I don’t think this is a good method because I don’t know how to get the rendered size of a glyph.

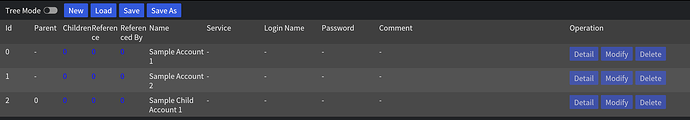

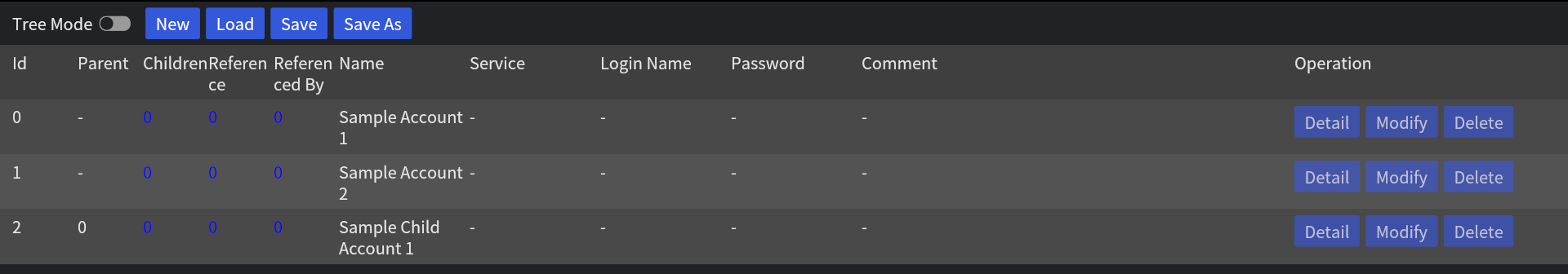

A screenshot of the table:

You can combine Text.wrapping with Container.clip. If by any chance you’re using tiny-skia instead of wgpu, you will find that Container.clip doesn’t work properly with it, but Text.wrapping should.

I don’t think there’s is an implementation of clipping with an ellipsis yet.

1 Like

Thank you for your reply, but it seems that the combination of Text.wrapping and Container.clip does not work, I’ve tried this:

    container(
      Text::new("some text in cell")
      .wrapping(Wrapping::None)
    )
    .height(Length::Shrink)
    .align_y(Alignment::Center)
    .clip(true)

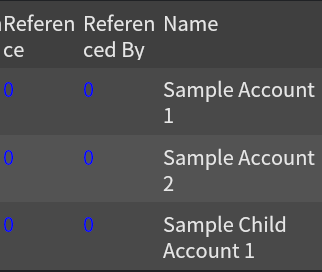

But I still get wrapped text:

It looks like Wrapping::None does nothing, did I use it in a wrong way?

Update:

I have a feeling that the wrapping field of Text is not functioning, because no matter I use Wrapping::None, Wrapping::Word, Wrapping::Glyph or Wrapping::WordOrGlyph, I observe no difference in rendered interfaces.

And I think I’m using wgpu as I saw a lot of rows starting with wgpu_core in my log.

Update 2:

Ah, I finally figured it out, I just need to use the latest version from github, not the version from crates.io, there might be an unpublished bug fix.

You’re right, I had forgotten about Apply `Wrapping` to `Paragraph`s by Konsl · Pull Request #2723 · iced-rs/iced · GitHub
